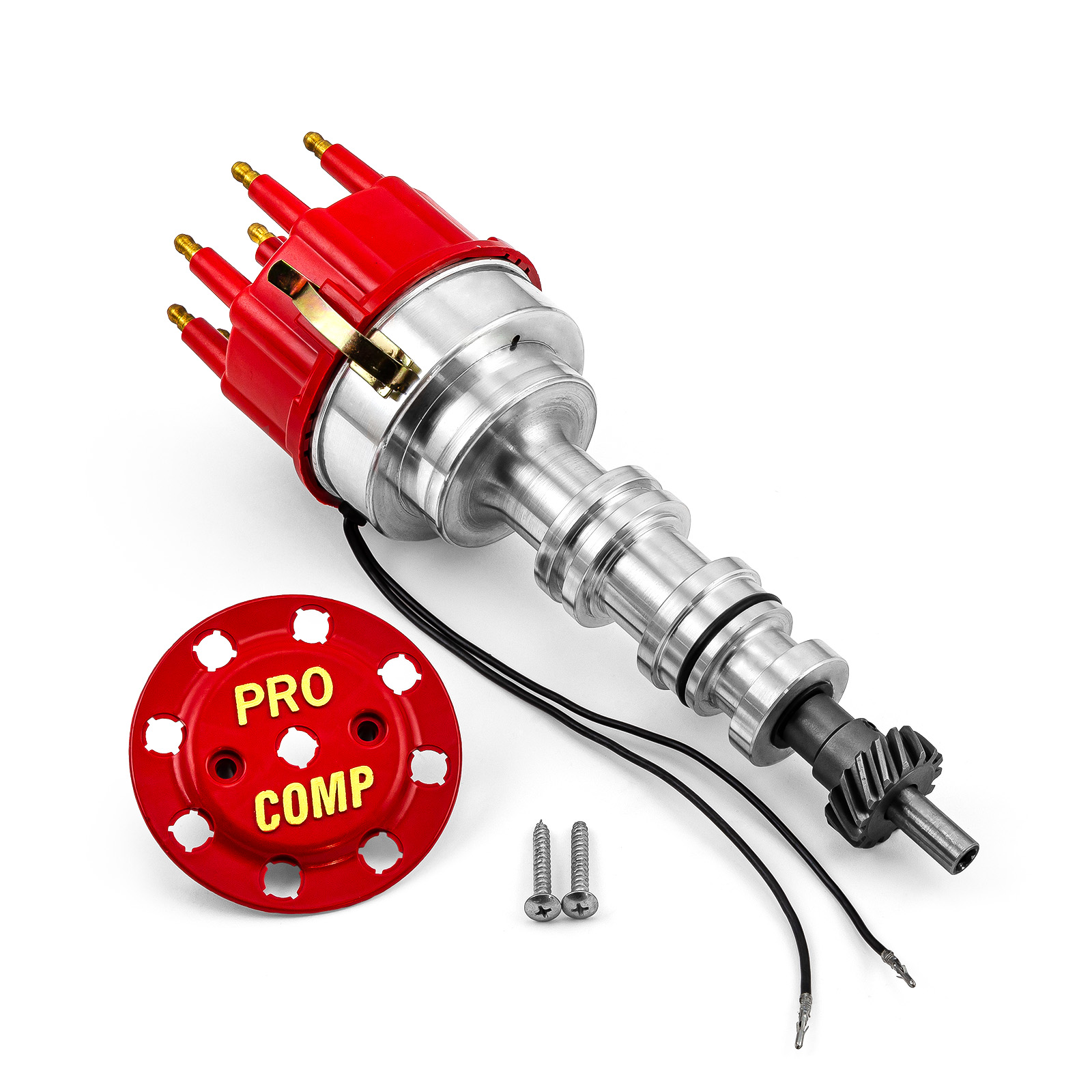

Ford Fe 390 427 428 8000 Series Pro Billet Distributor [Red]
|Product Line:||8000 Series|
|Mechanical Tach Drive:||No|
|Ignition Box Required:||Yes|
|Distributor Gear Rotation:||Standard|
|Distributor Cap Color:||Red|
|Housing Material:||Billet aluminum|
|Housing Finish:||CNC Machined|
|Notes:||Distributor requires ignition box to run.|
PCE 8000 Series billet distributors are designed for the enthusiast that is serious about performance but needs the small cap size due to space considerations when installed. They are precision CNC machined from billet 6061-T6 aluminum to exacting tolerances. The "spark plug" type terminals offer secure wire attachment. Under the brass terminals of the cap and rotor is an extremely accurate magnetic pickup that never requires adjustment along with an easy to adjust mechanical advance mechanism. The heavy duty 1/2" steel shaft is guided in a long sintered bushing as well as a sealed ball bearing at the top to precisely locate the reluctor. This combination yields stable timing and spark delivery at any RPM.
PCE Magneto Series feture a distributor housing machined from billet aluminum. PCE uses Computerised Numerical Controlled (CNC) mills and lathes to create each housing. This procedure produces a flawless, lightweight distributor housing that is accurate to within 0.001''.
Shaft and Ball Bearing Guide:
The complete line of PCE Distributors uses a polished steel shaft that receives a QPQ, or Tuftride coating. This process produces a durable finish that reduces friction and resists corrosion. To accurately guide this shaft, PCE uses a sealed ball bearing located at the top of the housing. At the bottom of the housing, an extra long sintered bushing controls the shaft. This combination keeps the shaft spinning smooth and accurately throughout 10,000+ rpm.
These PCE distributors use a high output magnetic pickup to trigger the ignition system. This pickup is completely maintenance free requiring no adjustment ever. The pickup is mounted to the base of the distributor housing and plugs directly into your Ignition Control. A trigger signal is created as a precision made reluctor (attached to the shaft) passes by. The reluctor has a ''paddle'' for each cylinder and when the paddle passes the pickup, a signal is created.
Adjustable Mechanical Advance:
One of the most important features of the PCE distributors is the adjustable mechanical advance assembly. The advance assembly allows you to accurately modify the advance curve to match your specific application. To start with, the advance plate is stamped and machined from chrome moly, weight pins are then staked in and tig welded in place. This assembly, along with the weights, then receive a corrosion resistant QPQ coating.
